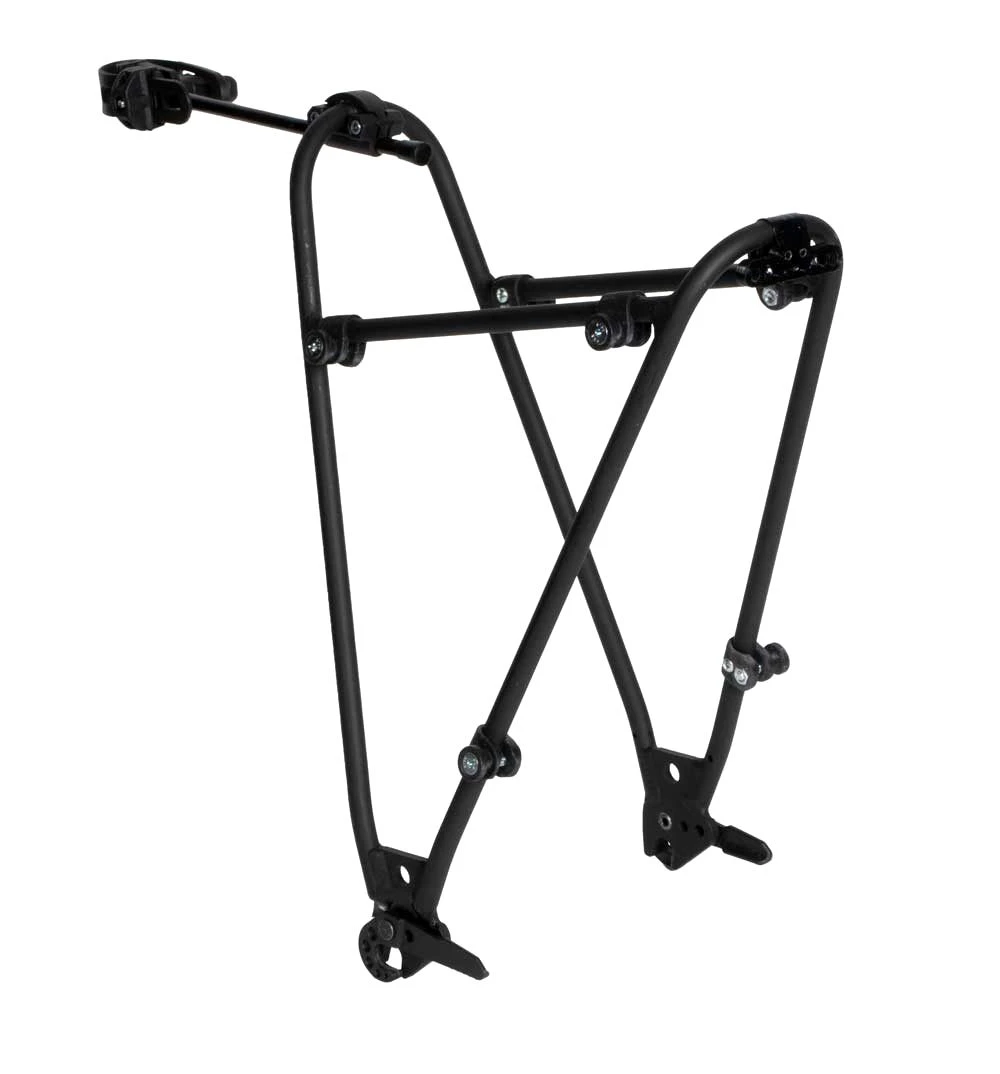

You rarely need a luggage rack or would like to be able to remove it quickly and easily when needed? Then the Quick Rack Light by Ortlieb is exactly the right solution for you. The removable e-bike and bike rack can be mounted in just 15 seconds. The Quick Rack Light can even be removed in 5 seconds. This way you are on the road with your classic rear rack on touring and mountain bike excursions at the weekend and during the week you go to work with bike bags.

Features of the Ortlieb Quick Rack Light

• Detachable luggage rack for bike & e-bike
• Mounting & dismounting in seconds
• Minimalistic, sporty design with one hanging level
• 15kg load capacity
• Also suitable for mounting on full suspension
• Compatible with Quick Rack mudguards
• Sporty rack with quick-release fastener – the Quick Rack Light from Ortlieb

For the initial installation of the Quick Rack Light, the mounting points are screwed into the matching luggage carrier threads. The luggage rack can be hooked onto this and then firmly connected to the seat post. The Quick Rack Light is then attached. For bikes without the corresponding threaded mounts on the rear triangle, there is an optional seat post mounting set.

Despite its purist design, the Quick Rack Light from Ortlieb is a fully-fledged luggage rack. The 10mm thick horizontal stays can carry 15 kilograms of luggage. All standard panniers can be easily attached to them. The rear arch also has a holder for rear lights. For maximum suitability for everyday use, Quick Rack mudguards can even be mounted. Of course, none of this changes the function of the bike.

Specifications

Manufacturer:	Ortlieb
Weight:	ca. 440g
Item:	Ortlieb Quick Rack Light
Scope of delivery:	1x Ortlieb Quick Rack Light, 2x screw-on support points each (M5 & M6), 1x additional extra-long mounting strut (300mm), preparation for optional rear light, mounting elements for Ortlieb QL3/3.1
Colour:	Black
Compatibility:	for all e-bikes and bikes with 26″/28″, as well as limited for 29″ wheels | compatible with Ortlieb Quick Lock3/3.1 fastening system
Material:	Aluminium
Mounting:	on luggage carrier mounts with M5/ M6 thread & on seat post
Wheel size:	26″, 28″ & 29″ (limited compatibility)
Installation dimension:	max. 190mm installation width
maximum load:	15kg
